Easy to learn and to use.
• Compact measuring units for use on most machine designs.
• All wireless units (Built-in Bluetooth® technology and integrated
rechargeable battery).
• Large, easy to read 5.7” color display.
• Programs with both symbols and text = easy to understand.
• TruePSD technology with unlimited resolution.
• Dual PSD, dual laser beams and dual inclinometers for superior
control and accuracy.
• 3 year warranty gives assurance.
• Fast service and support. 48-hours Express service if necessary.
• Low overall costs during the entire lifecycle of the product,
for example calibration, accessories, etc.
HORIZONTAL MACHINES

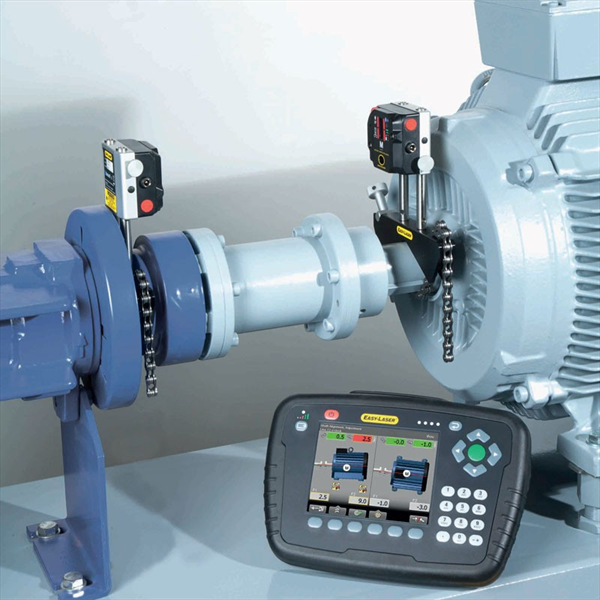

Horizontally mounted machines often consist of a pump and a motor, but can also include other types of machines such as gearboxes and compressors. Regardless of the machine type, it is easy to measure and align with Easy-Laser E420.
VERTICAL/FLANGE-MOUNTED MACHINES
This program is used for alignment of vertical and flange-mounted machines, e.g. pumps, motors, gear boxes. Shows center offset, angular error and shim value at each bolt.
VALUES – DIGITAL DIAL INDICATOR
The Values program can be used e.g. when one wants to measure as with dial gauges and to check bearing play. With the standard equipment and completely normal set up on the machine!
