A standard horizontal laser alignment system designed with "simplicity for the user" in mind. It can be downloaded to a PC or output directly to a printer. Includes EasyLink software for Windows® for archiving test data, alignment setups & maintenance periodicities

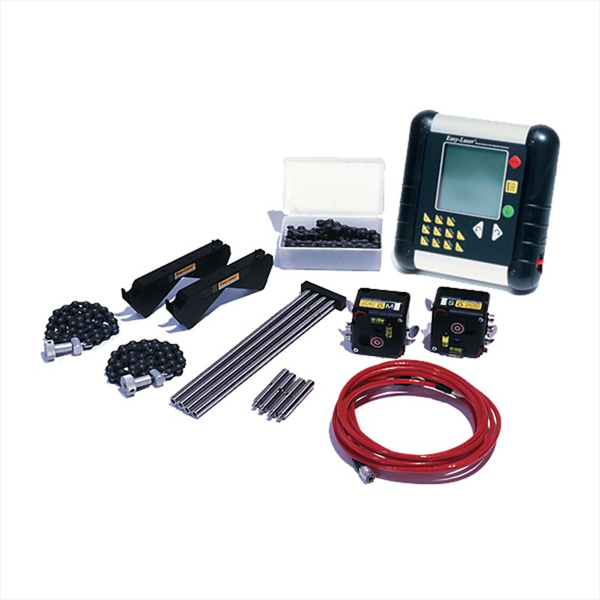

- Rugged industrial anodized aluminum display unit has a clear, backlit LCD display for easy reading even in poor light conditions
- Dual laser measuring units with integral clear spirit levels for quick, accurate positioning are affixed on either side of shaft coupling, and held in position with dual stainless steel rods, shaft brackets & chains, accommodating shafts 3/4" to 9.44" in diameter
- Durable membrane keyboard with all alphanumeric characters allows operator to intuitively control alignment, plus enter individual machinery identification & test information
- Internal memory for up to 1000 shaft alignments
- You can also check straightness and twist on the machine base
- Clearly Displayed Results: Shows Offset, Angular, and Shim / Adjustment values. Both horizontal & vertical values are shown “live”, making it much easier to adjust the machine
A. Offset value.
B. Angular value.
C. Shim/Adjustment values. Live direction indicated by filled machine feet symbols.
D. Tolerance settings display. Select speed range.
E. Filled coupling symbols, indicating that alignment is within tolerance.
- Downloads to PC or output directly to a printer & include EasyLink software for Windows® for archiving test data, alignment setups & maintenance periodicities
Motor/Pump Alignment is as Easy as 1-2-3 In HORIZONTAL mode, user rotates shaft & takes readings at 9, 12 & 3 o'clock positions. The result is displayed with shim and adjustment values.
PROGRAMS AND FUNCTIONS
- HORIZONTAL – For the alignment of horizontal machines by the 9–12–3 method.
- SOFT FOOT – With this program you can check that the machine is resting on all its feet. Shows which foot should be corrected (if necessary).
- THERMAL GROWTH COMPENSATION – Compensates for difference in thermal growth between machines. Sub-function.
- TOLERANCE CHECK – Checks the offset and angle values in relation to selected tolerance. Shows graphically when the alignment is within tolerance. Sub-function.
- MEASUREMENT VALUE FILTER– Advanced electronic filter for accurate results even in poor measuring conditions such as air turbulence and high vibration. Sub-function.
|
