  • DS 500 mobile - Multi-function measuring instrument

Mã sản phẩm
:

Giá bán
: Liên hệ
Kho hàng
: Còn hàng
Hãng sản xuất:
Số lượng:
Đặt hàng

Liên Hệ Báo Giá

Zalo: 0978.955.872

Email: info@ptscvn.com


  • Thông tin sản phẩm
  • Miêu tả sản phẩm
  • Download
  • Hỗ trợ trực tuyến

Article no: 0500 501

If we talk about operational costs of compressed air plants we are actually talking about the energy costs as they make up about 70 to 80 % of the total costs of a compressed air plant.

Depending on the size of the plant this means considerable operating costs. Even in smaller plants this may quickly add up to 10,000 to 20,000 € per year. This is an amount which can be considerably reduced – even in the case of well operated and maintained plants.

Does this also apply to your compressed air plant? Which actual costs per generated m³ air do you actually have? Which energy is gained due to the waste heat recovery? What is the total performance balance of your plant? How high are the differencial pressures of single filters, how high is the humidity (pressure dew point), how much compressed air is used? …

By means of the new multifunction measuring instrument DS 500 mobile and the suitable sensors and meters all these questions can be answered easily. For example by means of a long-term measurement over 7 days, data recording and evaluation at the PC.

By means of the multifunction measuring instrument DS 500 mobile for the first time all measuring data of a compressor station can be recorded, indicated and evaluated.

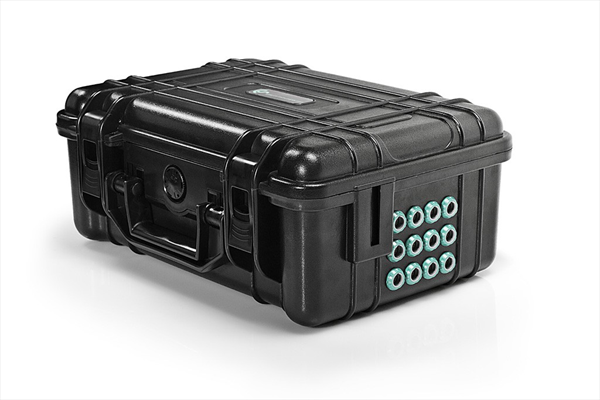

At 12 freely assignable sensor inputs all CS Instruments sensors can be connected as well as any optional third-party sensors and meters with the following signal outputs:

4 - 20 mA, 0-20 mA  |  0-1 V / 0-10 V / 0-30 V  |  Pt 100 (2- or 3-wire), Pt 1000 (2- or 3-wire), KTY  |  pulse outputs (e.g. of gas meters) frequency output  |  Modbus protocol

Your advantages at a glance

  • Easy and clear layout:

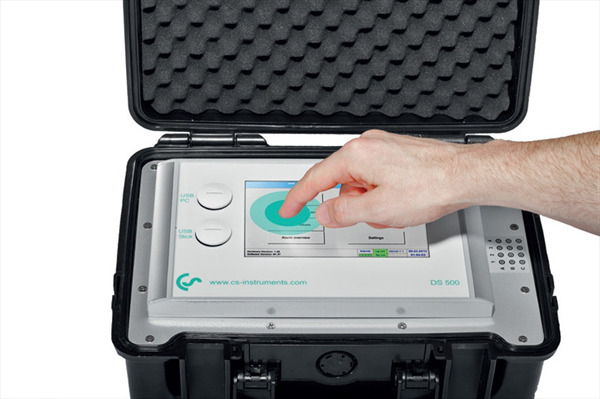

    Very easy operation via 7“ color display with touch panel
  • Versatile:
    Up to 12 sensors/meters connectible also third-party sensors/meters including power supply
  • Reliable:

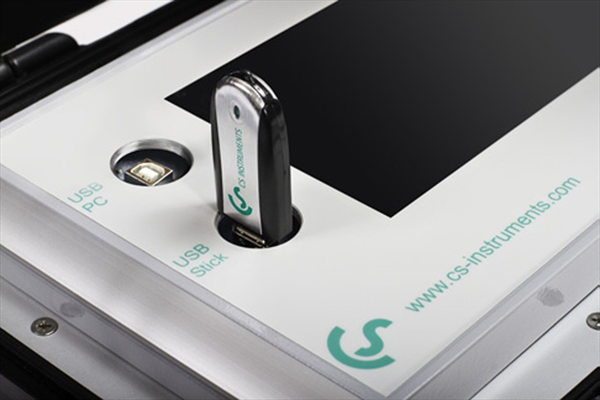

    Stores all measured values on a memory card, easy reading-out via USB stick possible
  • Intelligent energy analysis:
    Daily/weekly/monthly evaluations Mathematic function for internal calulations, e.g. the typical key data of a compressed air plant:
    - costs in € per generated m³ air
    - kWh/m³ of generated air
    - consumption of single lines including summation

Dimensions of housing 360 x 270 x 150 mm
Connections 4 / 8 / 12 sensors and supply,
1 x RJ 45 Ethernet connection
Weight:
4.5 kg
Material Die cast metal, front screen polyester
Sensor inputs 4/8/12 sensor inputs for analogue and digital sensors
freely allocatable. See options
Digital CS sensors for dew point and consumption with SDI
interface FA/VA 400 Series,
Digital third-party sensors RS 485 / Modbus RTU, other
Analogue CS sensors for pressure, temperature, clamp-on
ammeters preconfigured
Analogue third-party sensors 0/4 ..20 mA, 0..1/10/30V, pulse,
Pt 100 / Pt 1000, KTY
Power supply for
sensors

24 VDC, max 130 mA per sensor, integrated power supply max 24 VDC, 25 W
Version 8/12 sensor inputs has 2 integrated power supplies each max 24 VDC, 24 W

Interfaces USB stick, USB cable, Ethernet / RS 485 Modbus RTU / TCP,
SDI other bus systems on request, WEB server optionally, GSM-module
Memory card Memory size 2 GB SD memory card standard,
optionally up to 4 GB
Power supply 100...240 VAC / 50-60 Hz, special version 24 VDC
Colour screen 7" touch panel TFT transmissive, graphics, curves, statistics
Accuracy see sensor specifications
Operating temperature 0...50°C
Storage temperature -20...70°C



Input signals

Current signal
internal or external power supply
Measuring range
Resolution
Accuracy
Input resistance


(0...20mA/4...20mA)
0…20 mA
0,0001 mA
± 0,003 mA ± 0,05 %
50 Ω

Voltage signal
Measuring range
Resolution
Accuracy
Input resistance

(0...1 V)
0…1 V
0,05 mV
± 0,2 mV ± 0,05 %
100 kΩ

Voltage signal
Measuring range
Resolution
Accuracy
Input resistance
(0...10 V / 30 V)
0…10 V
0,5 mV
± 2 mV ± 0,05 %
1 MΩ
RTD Pt 100
Measuring range
Resolution
Accuracy

-200…850° C
0,1° C
± 0,2°C (-100...400°C)
± 0.3°C (further range
RTD Pt 1000
Measuring range
Resolution
Accuracy

-200…850° C
0,1° C
± 0,2° (-100...400°C)
Pulse
Measuring range

min pulse length 400 μs
frequency 0...1 kHz
max. 30 VDC
bar high: 2.5V
bar low: 0.7V

Description Version Format/Size
DS 500 Mobile Leaflet 19042012 PDF Document pdf (2.7 MB)
DS 500 Mobile Manual V 1.45 PDF Document pdf (5 MB)
DS 500 Firmware V 1.75 zip file zip (10.3 MB)
Installing Add-In V 1.0 PDF Document pdf (164 KB)
DS 500 Export V 1.0 PDF Document pdf (287 KB)
DS 500 Export xls V 1.0 XLS Datei xls(188KB)
Measurement of compressed air consumption
- minimization of energy loss - DS 500
25042012 PDF Documentpdf (275 KB)
