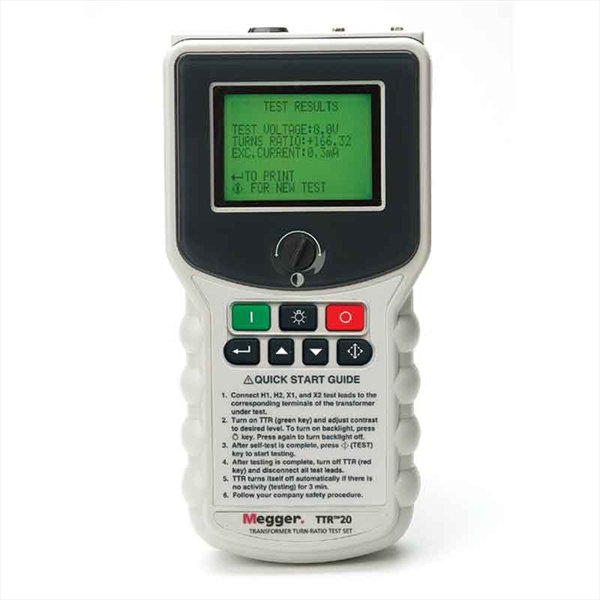

- Tests turns ratio, excitation current and polarity
- Fast, easy hand-held operation. No need to kneel or bend down to operate the instrument
- Measures turns ratio range of 10,000:1, with a high accuracy (±0.1%, 0.8 to 2000) at a low excitation voltage
- Records ratio errors for bushing CTs to an accuracy of ±0.1% nameplate, reducing the need for additional test equipment and improving set-up time
- Perfect for meter shops, this meter can be used for inspection purposes to determine the no-load accuracy of most CTs and PTs; it also can be used to determine the need to test potentially faulty CTs and PTs
- Automatically self-calibrates for each test
- Simple, one-button operation, Very fast to use
|
