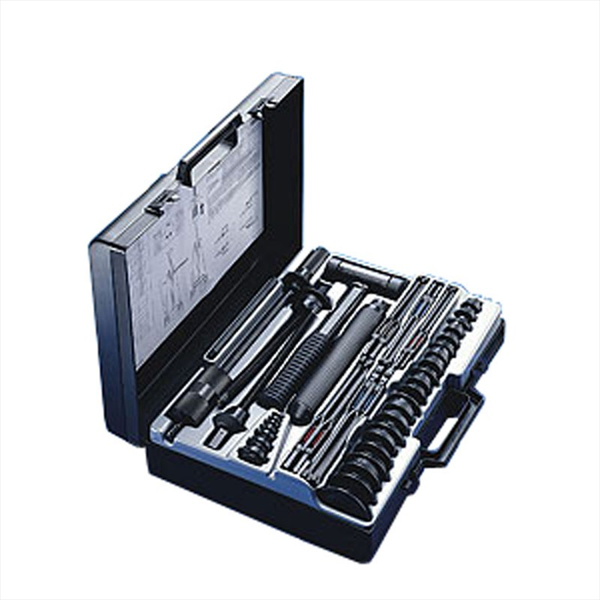

For dismounting, the kit comprises two centre screws, five sets of three puller arms each made of high-tensile alloy steel, a puller handle, a slide hammer and seven support rings to support the bearing with an interference fit on the outer-ring only. The arms are provided with color codes for an easy identification. For mounting, the kit consists of 21 impact rings, two high-strength aluminium sleeves and a dead-blow hammer with nylon faces. The rings as wll as the impact surfaces are made of a super-tough acetal resin, giving high mechanical strength and impact fatigue resistance at a very low weight. The fibreglass handle, with comfortable grip for good handling, absorbs shock and vibration. All parts are clearly arranged in a practical transport case. A selection chart and instructing pictures are included in each unit.
Operating Instructions
Dismounting ball bearings on a shaft and in a housing
1. Select arms and spindle with the aid of the selection chart.
2. Make sure arms are spread over the bearing as per chart below.
3. Attach the arms to the spindle nut. For easy assembly the spindle nut is provided with an elastic locking ring that keeps the arms in correct position during installation.
4. The bearing can now easily be dismounted with a spanner.
5. The largest arm set is provided with locking plates which rest against the inner-ring of the bearing preventing the tip from slipping out of the raceway.
Dismounting ball bearings in a housing without shaft
6. Follow instructions 1., 2., 3. and 5.
7. Select the right support ring to close bearing bore providing a support to the spindle.
8. Screw in the slide hammer and generate the necessary impact to dismount the bearing.
Mounting bearings, bushings, seal rings, belt pulleys etc.
9. Select the right impact ring and -sleeve and generate necessary impact force by using the dead-blow hammer.
