- RMS volts
- RMS amps
- Watts
- Energy kWh
- Energy cost
- VA
- VAR
- True Power Factor
- Hz
- THD (Total Harmonic Distortion) to the 63rd harmonic
- Duty Cycle

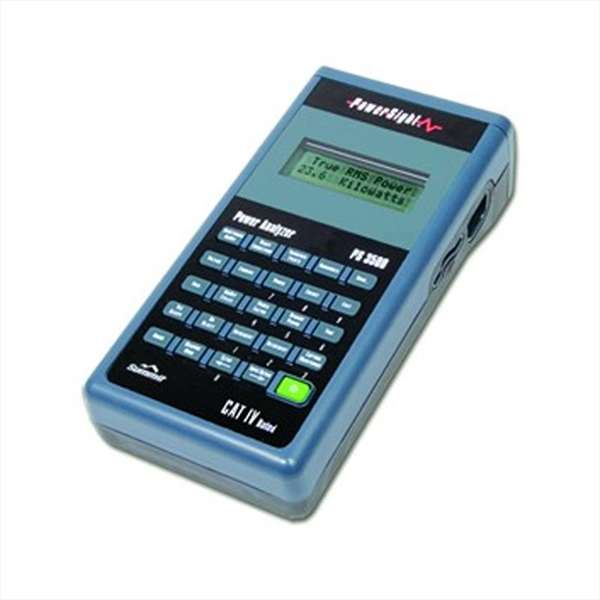

Get complete power/energy/cost analysis in a compact, rugged package. The PS3500 measures voltage, current, KW, KVA, KVAR, true power factor, displacement power factor, KWh, Hz, elapsed and estimated cost, duty cycle. Long term logging for up to months at a time. Manual waveform capture ability. Real time meter display of present values.
It's rubberized contoured case and rugged construction make the PS3500 ideal for field work. It's easy-to-use too. Clearly labeled buttons display related power measurements on a back-lit LCD window for quickly making spot measurements at panels and equipment. Our patented SureStart feature automatically checks for wrong connections on three phase connections before you begin monitoring to ensure a successful power study every time.
It comes with the latest Bluetooth technology to download data to your PC wirelessly. Plus a removable SD memory card slot allows you to store more power survey data and share the data with others. PC software and Report Writer are included.
