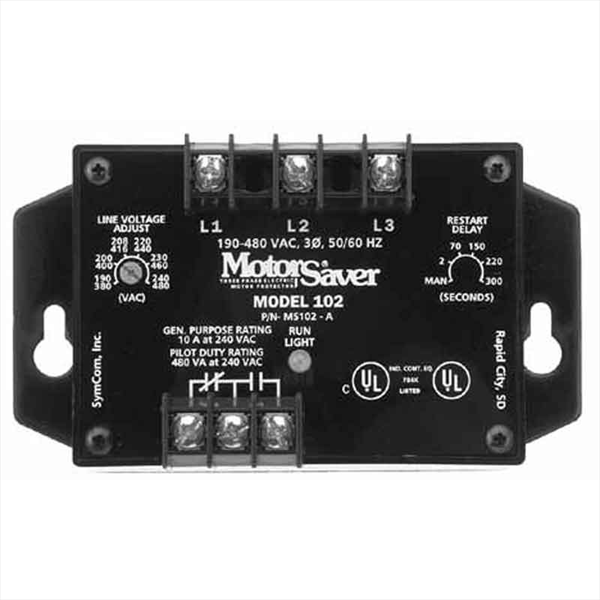

A unique microcontroller-based voltage and phase-sensing circuit constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the MotorSaver’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels. The Model 102A
includes advanced single LED diagnostics. Five different light patterns distinguish between faults and normal conditions.
See Appendix A, Figures 9 & 10 for typical wiring diagrams.
|
