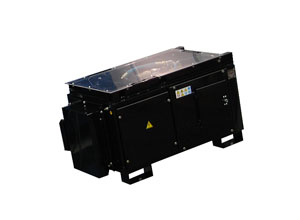

PURPOSE – for filling by the compressed air of the main pneumatic brake system of electric trains
SPECIFICATION
| POWER NETWORK |
A three-phase network of an alternating current a voltage 220 V, frequency of 50 Hz |
| TEMPERATURE OPERATION |
from minus 55 °С up tu plus 55 °С |
| OPERATING MODE |
Is repeated-short-term with duration of inclusion up to 50 % |
| MAX. WORKING PRESSURE |
10 bar |
| PRODUCTIVITY |
650 l/min
|
| CAPACITY OF ELECTRICMOTOR |
5,5 kW |
| POWER CONSUMPTION OF MOTOR |
6,0 kW
|
| POWER CONSUMPTION FOR OIL HEATING |
(at ambient temperature lower minus 25 °C) 1,0 kW |
| OIL SPECIFIC CONSUMPTION |
Not more as 5 mg/m3 |
| NOISE LEVEL |
Not more as 78 dB |
| OVERALL DIMENSIONS |
1165x700x650 mm |
| WEIGHT |
(with air drier), net 380 kg |
Note - It is possible manufacturing units with productivity 300; 650 l/min, working pressure from 6 up to 10 bar, and also with others characteristics of a power line for maintenance with the compressed air of pneumatic systems of trams, trolley buses, trains of underground, other equipment working both on transport, and in stationary execution in the specified conditions of operation, are carried out their binding for installation on existing and again developed models of electro transport.
