The dew point sensor FA 415 is extremely long-term stable and can be installed and removed quickly and easily under pressure by means of the screwable measuring chamber including quick coupling. The dew point set is supplied ready for plug-in, i. e. everything is completely wired. The alarm values can be freely adjusted.

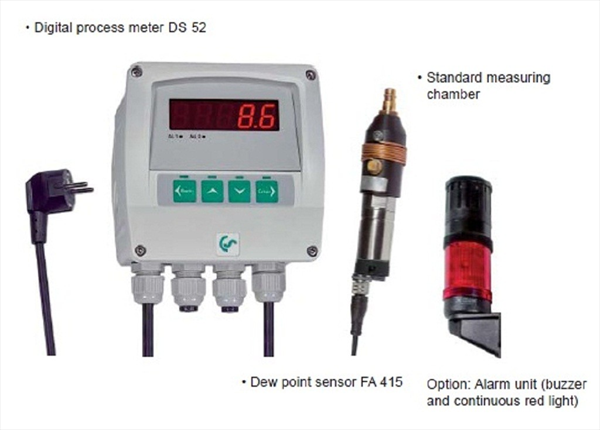

consisting of:
| DS 52 LED digital process meter in wall housing |
0500 0007 |
| FA 415 dew point sensor (-20...50 °CTD) |
0699 0415 |
| Standard measuring chamber up to 16 bar |
0699 3390 |
| Connection cable, length: 5 m |
0553 0104 |
Special features
- System ready for plug-in: Everything completely wired
- No time-consuming studying of the instruction manual
- 2 alarm contacts (230 VAC, 3 A) pre-and main-alarm freely adjustable
- 4...20 mA analogue output Option alarm unit: Buzzer and continuous red light
