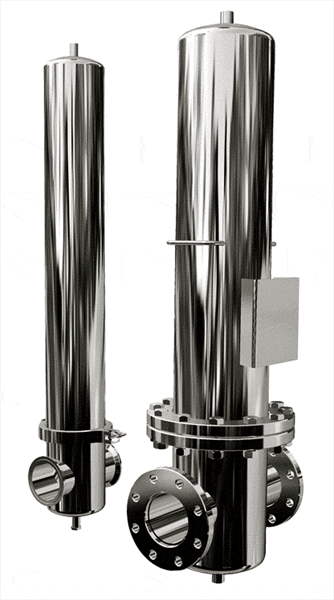

SF series
SF stainless steel sterile filters are designed for high-efficient sterile filtration of compressed air, process air and technical gasses. SF sterile filters provide high-efficient removal of sub-micron particles down to 0,01μm including microorganisms (bacteria). Filter housing surface is polished down to grade Ra0,8. Required compressed air quality according to standard ISO 8571-1 can be achieved with appropriate filter element. All components meet the FDA requirements for contact with food in accordance with the Code of Federal Regulations (CFR), title 21. Fluid group 1 on request.
Characteristics
operating pressure |
16 (10) bar |
volume flow rate |
75 to 21120 Nm3/h |
connections
|
DN10 to DN50 TC ISO
DN100 to DN200 EN |
operating temp. range
|
up to 150 °C |
material |
stainless steel 1.4404 |
Applications
• packing industry
• biotechnology
• breweries
• chemical industry
• dairies
• fermentation processes
• food and beverage industry
• pharmaceutical industry
• hospitals
