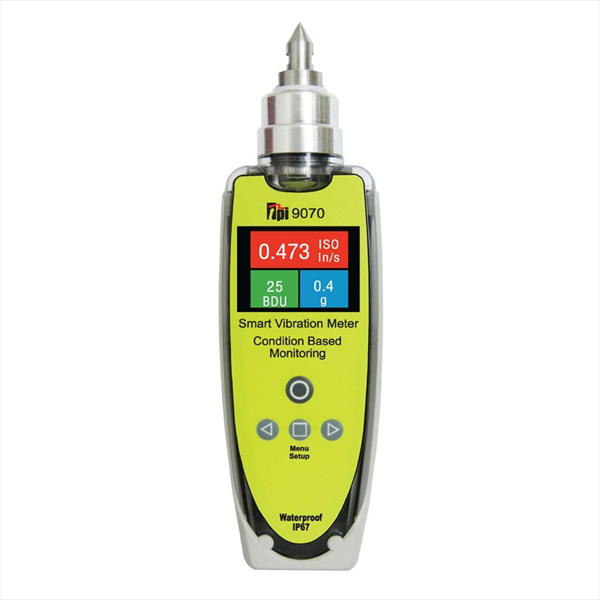

TPI 9070 Smart Vibration Meter with ISO based alarms
a simple, easy to use, low cost vibration meter that records, analyze and displays vibration signals at the push of a button.
Overall machine and bearing conditions:
vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BDU).
Easy vibration analysis:
clear picture of machine problems detected with built in band filters:
1X (unbalance)
2X (misalignment)
3X (looseness)
Identify complex issues:
800-line spectrum with zoom and cursor.
Readings are easily saved and recalled with all alarm levels and settings stored in non-volatile flash memory. Run speed and machine type are entered with the simple to use Setup Wizard.
