FEATURES
- Large measuring range from 10K to 1Tohm
- Easy to read logarithmic display
- Measuring voltages: 100, 250, 500, 1000, 1500, 2000, 2500, and 5000V
- Measuring range: 100K to 100Mohm (up to 1000V)
- Voltage measurement to 2000Vac-dc
- Guard terminal for the elimination of surface current
APPLICATIONS

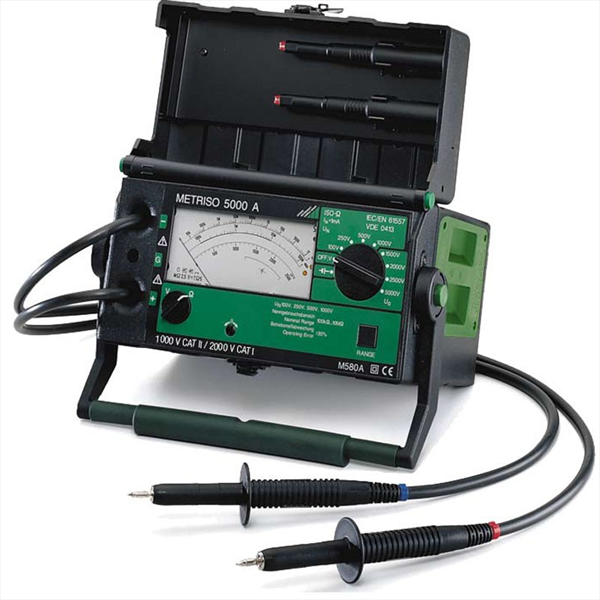

The Metriso 5000A is ideally suited for insulation measurements of cables, motors, etc. This instrument is used for the non-destructive measurement of insulation resistance in electrical systems, machines, transformers, and cables. With its eight selectable test voltages up to 5KV, the Metriso 5000A can be used in many applications, including locomotives, tram systems, and ocean going vessels. |
